SB系列不锈钢电动抽液泵

I. product overview

一、产品概况

SB series plunger pump (oil barrel pump, electric pump) can be directly inserted into the material barrel

( GB/325-1991).

Can transport all kinds of oil, corrosive chemicals, other liquids.Depending on the fluid being transferred

Properties, the wet part of the pump can choose aluminum alloy,

Stainless steel, 316 stainless steel, etc.Drive motor is equipped with single-phase standard motor, explosion-proof motor,

High speed motor and other options.According to the material, the motor is different.

Models can be divided into: sb-1, sb-2, sb-3, sb-3-1, sb-4, sb-5, sb-6, sb-7.

Sb-8 series aluminum alloy, stainless steel or explosion proof.We have the details,

Welcome to request.The series of pumps can be selected according to the explosion-proof area and non-explosion-proof area, where in the explosion-proof area

Explosion-proof motors are used, which can be divided into three types.

When the use conditions contain a variety of flammable and explosive mixture, should choose the highest group grade.

SB系列插桶泵(油桶泵，电动抽液泵)可以直接插入物料桶

（适用于GB/325-1991钢桶）中抽取桶中液体。

可输送各种油料、带腐蚀性化学药水、其他液体。根据所输送的液体

性质，泵体沾湿部分材料可选用铝合金、

不锈钢，316不锈钢等组成。驱动电机配备单相标准电机，防爆电机，

高转速电机等多种选择。根据材质,电机不同，

型号可分为： SB-1，SB-2,SB-3,SB-3-1,SB-4,SB-5,SB-6,SB-7，

SB-8系列铝合金，不锈钢或防爆型。我们备有详细资料，

欢迎索取。该系列泵可按防爆区域和非防爆区域选用，凡在防爆区域

使用配置防爆型电机，这类电机分三种机组型号，

当使用条件含各种易燃易爆混合时，应选用较高组级。

【This series of pumps can transport acid, alkali, salt, oil, beverage and other media, widely used in chemical industry, petrochemical industry,

Fine chemical Industry, dye chemical industry, environmental protection, water treatment, medicine, food and other departments】

【该系列泵可输送酸、碱、盐、油品、饮料等介质，广泛用于化工、石油化工、

精细化工、染料化工、环保、水处理、医药、食品等部门】

2.Two SB series stainless steel electric pump performance parameters table

二、SB系列不锈钢电动抽液泵性能参数表

产品	流量	流量	扬程	转速	功率	进口	出口	材质	重量
	流量	流量	扬程	转速	功率	进口	出口	材质	重量
型号	m³/h	L/min	m	r/min	Kw	mm	mm	泵管	Kg
SB-1	7.8	130	7.5	10000	1.1	50	25	不锈钢	7.8
SB-1-1	6.6	110	7	10000	0.88	50	25	不锈钢	7.5
SB-1-2	7.8	130	7.5	10000	1.1	50	25	不锈钢	8
SB-1-3	6.6	110	7.5	10000	0.88	50	25	不锈钢	7.8
SB-2	7.8	130	7.5	10000	1.1	50	25	铝合金	5.5
SB-2-1	6.6	110	7.5	10000	0.88	50	25	铝合金	5.3
SB-3	9	150	10	12000	0.88	50	25	不锈钢	9
SB-3-1	9	150	10	12000	0.88	50	25	不锈钢	9.5
SB-4	9	150	10	12000	0.88	50	25	铝合金	7.5
SB-6	6	100	7	8000	0.55	41	25	不锈钢	5.7
SB-7	6	100	7	8000	0.55	41	25	不锈钢	5.5
SB-8	6	100	7	8000	0.55	41	25	铝合金	3.8

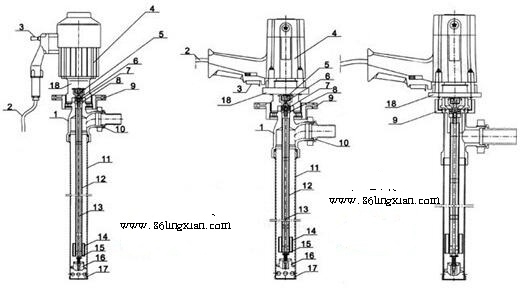

3.Three outline diagram

三、外形示意图
